LED GSM DIALER

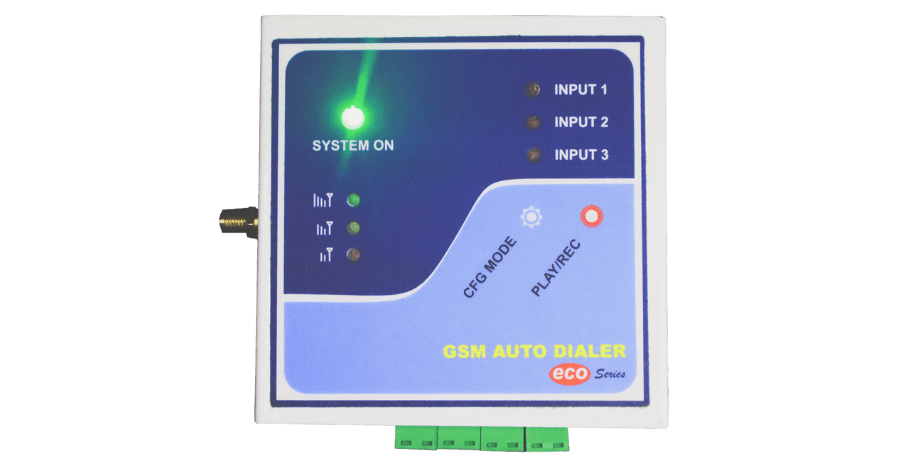

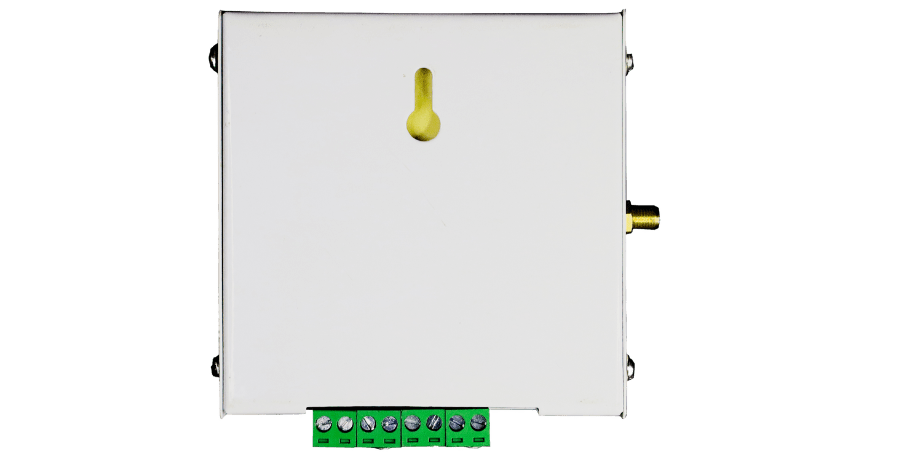

The LED-GSM Dialer is a reliable communication and alert system designed to monitor critical inputs and automatically send alerts via GSM calls and SMS to predefined mobile numbers. It features LED indicators for real-time status display and supports easy configuration. With cloud connectivity, it enables remote monitoring and is ideal for applications where immediate mobile alerts are essential.
♦ Low Cost – Affordable yet reliable solution for gas suppression systems.
♦ Support all sim cards including BSNL, JIO.
♦ SMS Configuration – Effortless setup via SMS.
♦ Built in LTE GSM modem compatible with all SIM cards, including LTE SIM cards like JIO, ensuring reliable connectivity.
♦ Supports customizable SMS text length flexible text options ranging from 16 to 50 characters for personalized notifications.
♦ Stores up to 15 numbers memory for up to 15 contacts, including support for ISD numbers for comprehensive alert coverage.
♦ Simple 5 SMS commands easily configure the dialer with just five straightforward SMS commands.
♦ Instant Alerts recieve immediate call and SMS notification for any trigger events.
♦ Unique message for each trigger assign personalized voice and text messages to each of the three triggers.
♦ 25-second voice recording record up to 25 seconds of customized voice messages for clear and effective communication.
♦ Customizable SMS alerts choose from 16 different SMS alerts to match your specific needs.
♦ Message playback replay recorded messages using SMS commands.
♦ Dual use ideal for both intrusion detection and fire alarm systems.
♦ Micro-controller based provides reliable and precise performance with advanced micro-controller technology.
♦ 12 – 24V / 2A DC Supply supported.
♦ < 250ms Zone Response Time.
♦ < 1 kilo Ohm For NC Zone Loop Resistance.
♦ < 150m Max Length of Sensor Cable (Multi core).
♦ 0.5 m 6 db spring High gain GSM Antenna with magnetic base.
♦ Storage temperature: -20c to 60c.
♦ Maximum humidity: 95% non-condensing.
♦ Environment: residental / commercial / light industrial.
