♦  Very Affordable – Cost-effective solution ideal for homes, offices, and small businesses.
♦  Simple User Control – Easy-to-use interface for quick arming, disarming, and control.
♦  Customizable Zone Settings – Flexible configuration for different sensors and input zones.
♦  Inbuilt Industry-Grade SMPS – Ensures stable power supply and long-term reliable performance without external adaptors.

♦  Micro-controller based.

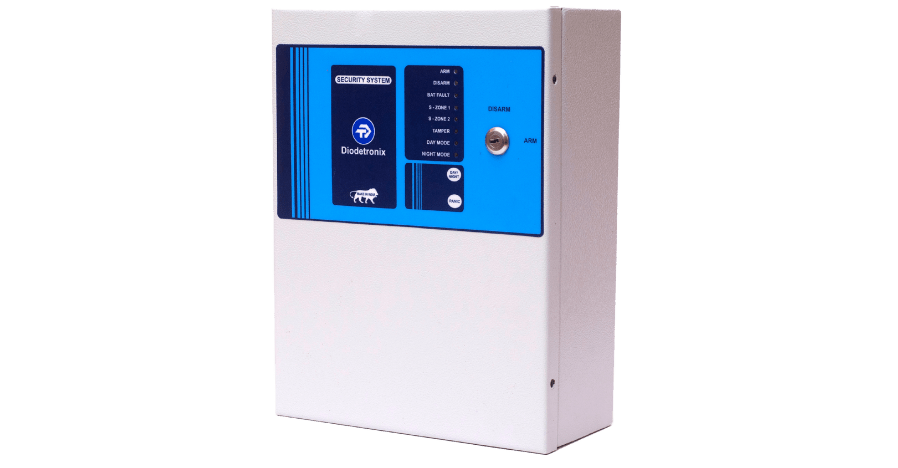

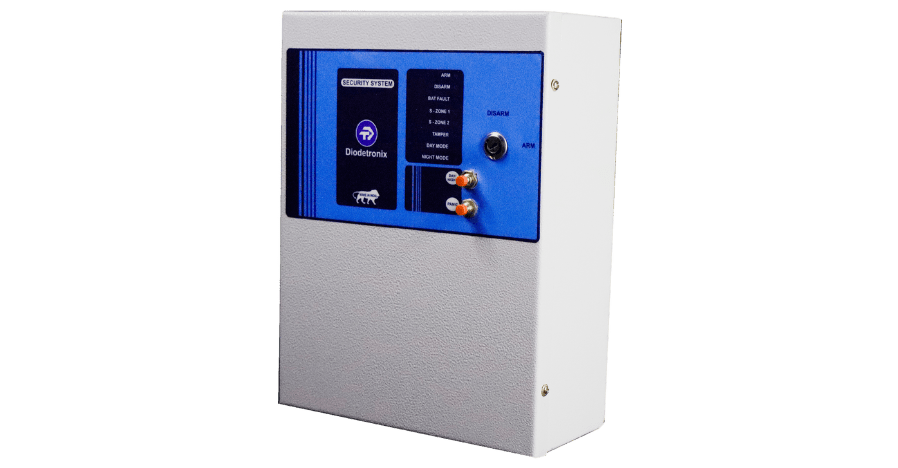

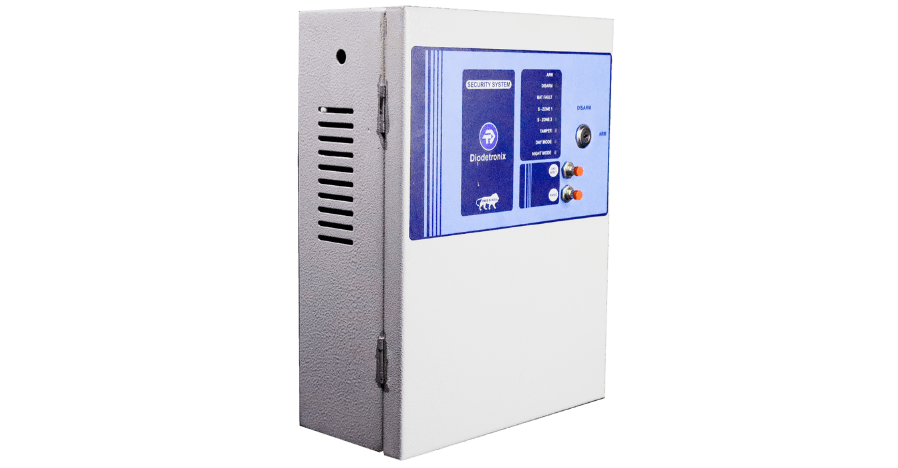

♦  4+1 zone control panel.
♦  15 mobile numbers can be stored.
♦  2 remotely controllable relay outputs.
♦  4 max hooters are supported.
♦  On request can be expanded up to 100 numbers.
♦  Key fob enabled arm/disarm or panic activation.
♦  Voice message saved through mobile.
♦  SMS configurable with name and location.
♦  Open and close notification with time date.
♦  In built tamper switch.
♦  User friendly menu navigation.
♦  Key pad extendable upto 1km range.
♦  All zones can be customised.
♦  4 digit secure pass code programmable from key pad.
♦  Entry/exit delay selection 0-255 seconds.
♦  Auto alarm silence/fault silence (configurable).
♦  User friendly shortcuts on the keypad.
♦  Mains and battery led indication.
♦  Fault indication (hooter/nework fail)
♦  In-built battery back up provision.
♦  In-built industrial grade SMPS.

♦  Quiescent current: 65 ma typical.
♦  Maximum sounder current output: 1A.
♦  Sounder saturation voltage: <1V at 1A.
♦  Zone response time: <250ms.
♦  Total current output: 2A at 230 V AC.
♦  Regulation: <9%.
♦  Ripple: <200MV RMS.
♦  Battery voltage: 12V DC.
♦  Battery type: SMF rechargeable.
♦  Battery recharge voltage: 13.8V+/-0.2V DC.

♦  Storage temperature: -20c to 60c.
♦  Maximum humidity: 95% non-condensing.
♦  Environment: residental/commercial/light industrial.
